Backing Up a Kubernetes to S3 with Velero

I wanted to sanity-check something simple: if a namespace disappears from a cluster, how quickly can I bring it back? This wasn’t meant to be a full disaster recovery experiment or a production-grade benchmark. The goal was just to validate that a namespace with a running application could be backed up, deleted, and restored without much friction.

There are several Kubernetes backup tools available. Some are quite feature-heavy and designed for enterprise environments. One example is Kasten K10, which is powerful but follows a pricing model. For this quick test I preferred something lightweight and open source, so I used Velero. Velero’s design is relatively straightforward: Kubernetes resource manifests are backed up, volume data can optionally be snapshot through the storage provider, and everything ends up stored in object storage. In this test the object storage backend was Amazon S3, and the cluster itself was a small K3s environment running v1.33.5+k3s1. I intentionally skipped PersistentVolumes for this run because I only wanted to confirm the mechanics of backing up and restoring namespace resources first.

Installing the Velero CLI

Velero distributes a client binary via GitHub releases. I downloaded the Linux tarball for version v1.18.0.

wget https://github.com/vmware-tanzu/velero/releases/download/v1.18.0/velero-v1.18.0-linux-amd64.tar.gz

Download result:

Saving to: ‘velero-v1.18.0-linux-amd64.tar.gz’

velero-v1.18.0-linux-amd64.tar.gz    100% 52.71M 27.0MB/s in 2.0s

Then extract the archive.

tar -xvf velero-v1.18.0-linux-amd64.tar.gz

Extraction produced the following files.

velero-v1.18.0-linux-amd64/LICENSE
velero-v1.18.0-linux-amd64/examples/minio/00-minio-deployment.yaml
velero-v1.18.0-linux-amd64/examples/nginx-app/README.md
velero-v1.18.0-linux-amd64/examples/nginx-app/base.yaml
velero-v1.18.0-linux-amd64/examples/nginx-app/with-pv.yaml
velero-v1.18.0-linux-amd64/velero

After that I moved the binary into the system path so it can be used anywhere.

mv velero-v1.18.0-linux-amd64/velero /usr/local/bin/

To confirm the client installation:

velero version

Output:

Client:
        Version: v1.18.0
        Git commit: 6adcf06b5b0e6fb93998d3e101e2cbdc134fa3c3

At this stage only the CLI exists locally. Nothing has been installed in Kubernetes yet.

Preparing Object Storage

Velero requires an object storage location to store backup metadata. In this case I used an S3 bucket.

BUCKET=s3-anantafatur-velero
REGION=ap-southeast-3

aws s3api create-bucket \
    --bucket $BUCKET \
    --region $REGION \
    --create-bucket-configuration LocationConstraint=$REGION

The bucket itself is just a storage target for backup artifacts. Velero will later store compressed archives containing Kubernetes manifests and metadata.

IAM Setup

Because Velero interacts with S3 and potentially EC2 snapshots, it needs an IAM identity with the appropriate permissions. I created a dedicated IAM user named velero.

aws iam create-user --user-name velero

Result:

{
 "User": {
  "UserName": "velero",
  "Arn": "arn:aws:iam::XXXXXXXXXXXX:user/velero"
 }
}

Next I created a policy granting permissions for EC2 snapshot operations and S3 object access within the Velero bucket.

cat > velero-policy.json <<EOF
{
 "Version": "2012-10-17",
 "Statement": [
  {
   "Effect": "Allow",
   "Action": [
    "ec2:DescribeVolumes",
    "ec2:DescribeSnapshots",
    "ec2:CreateTags",
    "ec2:CreateVolume",
    "ec2:CreateSnapshot",
    "ec2:DeleteSnapshot"
   ],
   "Resource": "*"
  },
  {
   "Effect": "Allow",
   "Action": [
    "s3:GetObject",
    "s3:DeleteObject",
    "s3:PutObject",
    "s3:AbortMultipartUpload",
    "s3:ListMultipartUploadParts"
   ],
   "Resource": [
    "arn:aws:s3:::${BUCKET}/*"
   ]
  },
  {
   "Effect": "Allow",
   "Action": [
    "s3:ListBucket"
   ],
   "Resource": [
    "arn:aws:s3:::${BUCKET}"
   ]
  }
 ]
}
EOF

Then attach the policy to the IAM user.

aws iam put-user-policy \
  --user-name velero \
  --policy-name velero \
  --policy-document file://velero-policy.json

Next I generated an access key for the user.

aws iam create-access-key --user-name velero

Example output:

AccessKeyId: <AWS_ACCESS_KEY_ID>
SecretAccessKey: <AWS_SECRET_ACCESS_KEY>

Velero expects these credentials in a small configuration file.

cat <<EOF > credentials-velero
[default]
aws_access_key_id=<AWS_ACCESS_KEY_ID>
aws_secret_access_key=<AWS_SECRET_ACCESS_KEY>
EOF

Installing Velero in the Cluster

With the CLI and credentials ready, Velero can install its controller components into Kubernetes.

velero install \
  --provider aws \
  --plugins velero/velero-plugin-for-aws:v1.14.0 \
  --bucket "$BUCKET" \
  --secret-file ./credentials-velero \
  --backup-location-config region="$REGION" \
  --snapshot-location-config region="$REGION"

The installer creates several CustomResourceDefinitions and deploys the Velero controller.

CustomResourceDefinition/backups.velero.io: created
CustomResourceDefinition/restores.velero.io: created
Namespace/velero: created
ServiceAccount/velero: created
Secret/cloud-credentials: created
Deployment/velero: created

Once installation finished, I checked that the deployment was running.

kubectl get all -n velero

Result:

pod/velero-57d646d4f-dbqpj 1/1 Running
deployment.apps/velero
replicaset.apps/velero

At this point the Velero controller was active in the cluster.

Deploying a Test Application

The cluster didn’t have any workloads running yet, so I deployed a small demo application to serve as backup material. First I created a namespace.

kubectl create ns velero-demo

Then I deployed a simple JavaScript game application.

kubectl apply -f https://raw.githubusercontent.com/mimqupspy/k3s-yaml/refs/heads/main/js-game-app.yml -n velero-demo

Checking the resources confirmed that the application was running.

kubectl get all -n velero-demo

Result:

pod/js-game-app-995486fc9-zrzcb   1/1 Running
service/js-game-app-service
deployment.apps/js-game-app

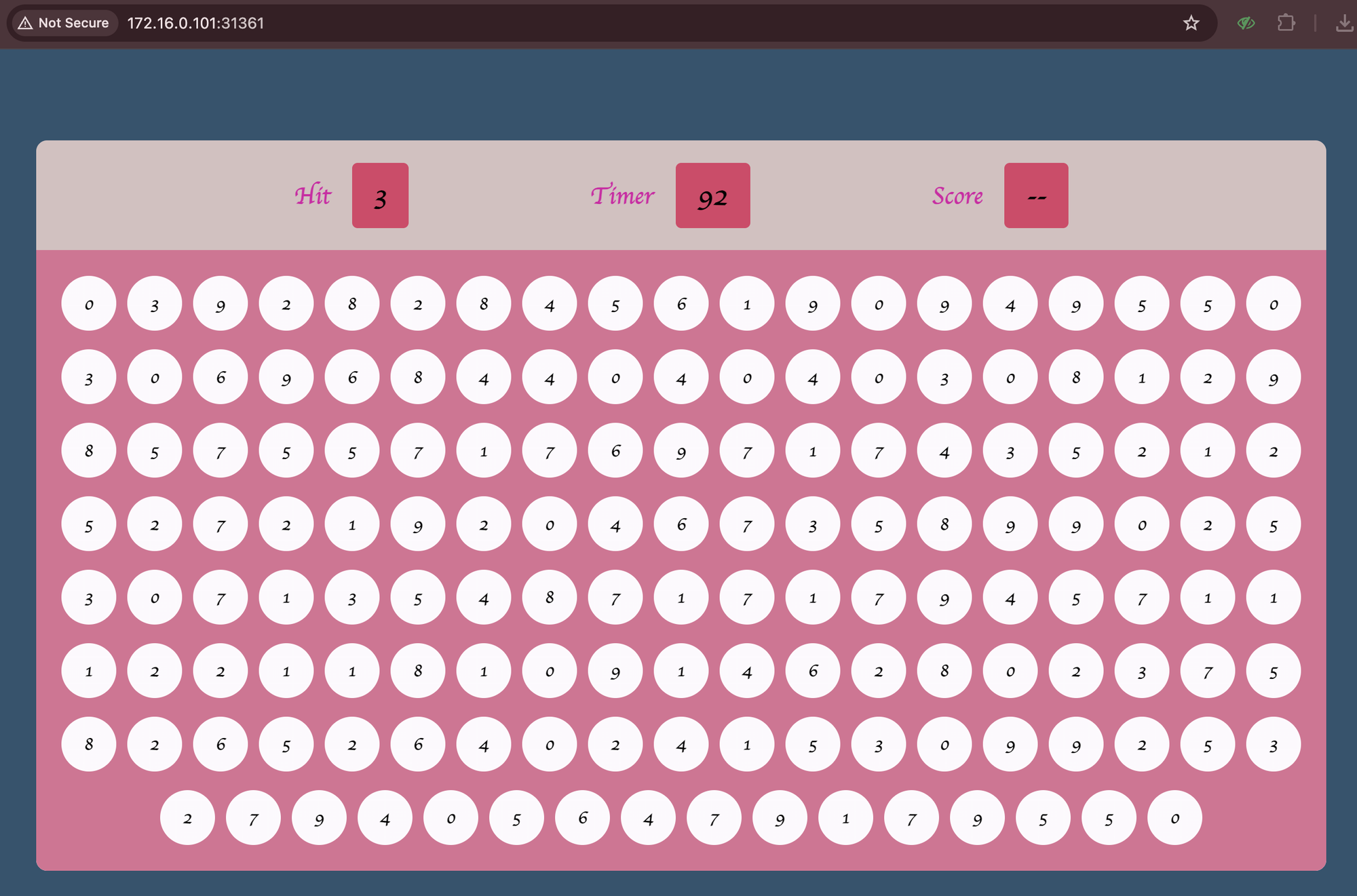

For easier testing I changed the service type to NodePort so the application could be accessed externally.

kubectl patch svc js-game-app-service -p '{"spec":{"type":"NodePort"}}' -n velero-demo

The service then looked like this:

service/js-game-app-service NodePort 3000:31361/TCP

At this point the application was running normally in the namespace.

Creating the Backup

With a working namespace in place, I triggered a Velero backup.

velero backup create velero-demo-backup --include-namespaces velero-demo

Velero immediately accepted the request.

Backup request "velero-demo-backup" submitted successfully.

Checking the backup status showed that the operation finished quickly.

velero backup describe velero-demo-backup

Important fields from the output:

Phase: Completed
Started:   11:29:19
Completed: 11:29:26
Total items to be backed up: 17
Items backed up: 17

On this cluster the entire backup finished in roughly seven seconds.

Verifying Backup Data in S3

To confirm that the backup actually reached S3, I checked the bucket.

aws s3 ls s3://s3-anantafatur-velero/backups/velero-demo-backup/

Objects stored in the bucket included:

velero-backup.json
velero-demo-backup-itemoperations.json.gz
velero-demo-backup-logs.gz
velero-demo-backup-resource-list.json.gz
velero-demo-backup.tar.gz

The compressed archive contains the Kubernetes manifests for the backed-up resources. Because this test only involved metadata, the files were very small.

Simulating a Failure

To simulate an accidental deletion, I removed the entire namespace.

kubectl delete ns velero-demo

After the namespace deletion completed, the application was gone.

Restoring the Backup

First I checked which backups Velero knew about.

velero get backups

Output:

NAME                STATUS      CREATED
velero-demo-backup  Completed

Then I initiated the restore.

velero restore create --from-backup velero-demo-backup

Velero created a restore request.

Restore request "velero-demo-backup-20260309113414" submitted successfully

Checking the restore details showed that it completed successfully.

velero restore describe velero-demo-backup-20260309113414

Result:

Phase: Completed
Total items to be restored: 10
Items restored: 10

Verifying the Restored Application

After the restore finished I checked the namespace again.

kubectl get all -n velero-demo

The application resources were recreated:

pod/js-game-app-995486fc9-zrzcb   Running
deployment.apps/js-game-app
service/js-game-app-service

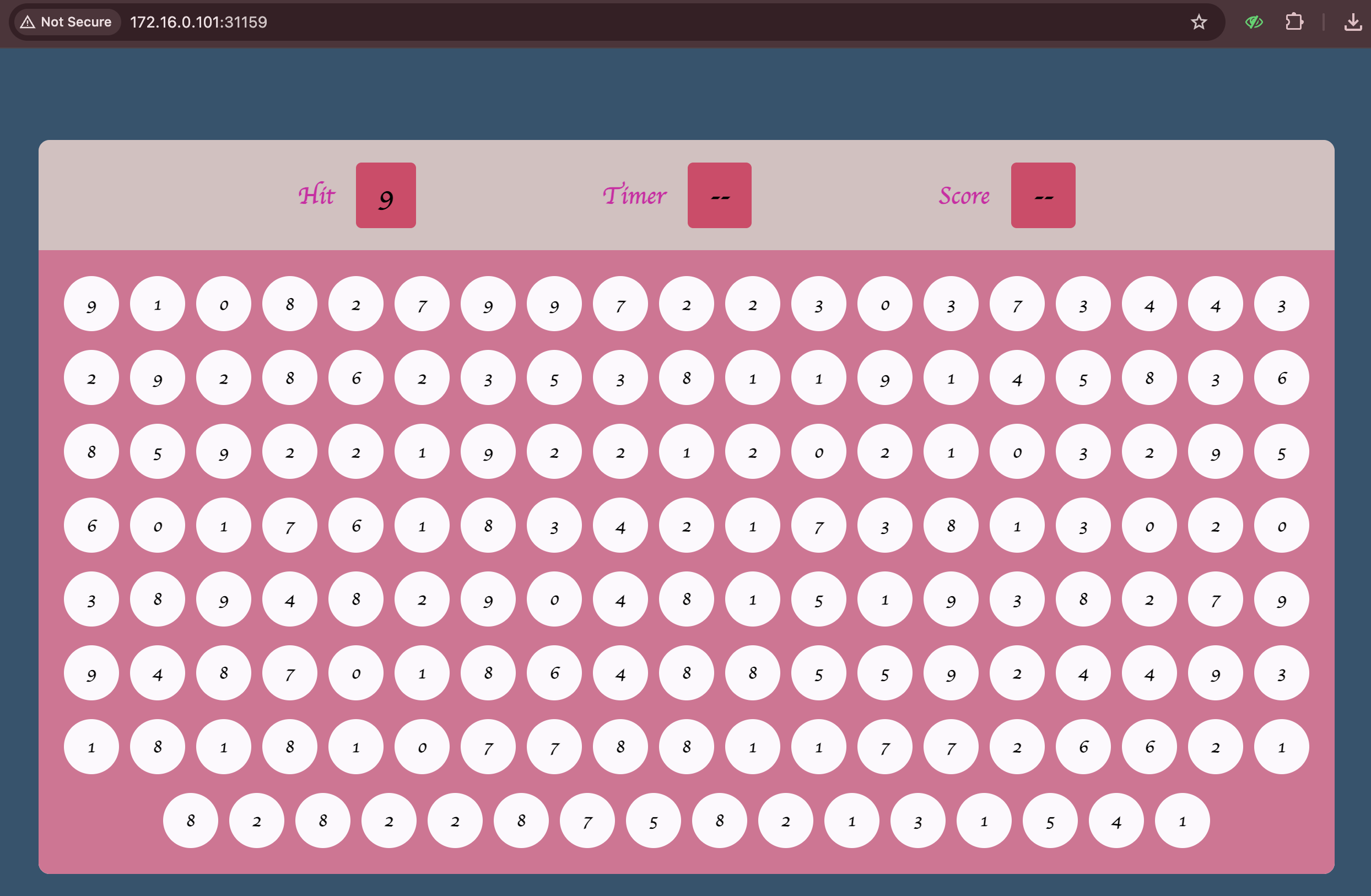

One detail changed compared to the original deployment. The NodePort assigned to the service was different.

Original service:

3000:31361

Restored service:

3000:31159

Kubernetes simply allocated a new port when recreating the service.

Overall the backup and restore workflow behaved exactly as expected. Velero successfully captured the namespace resources and restored them after deletion, and the artifacts stored in S3 were very small since they only contained Kubernetes manifests rather than application data. During the restore process, the Deployment, ReplicaSet, Pod, and Service were recreated without issues.

This run also intentionally skipped several areas that would matter in a more realistic setup. The test did not cover backing up PersistentVolumes, restoring stateful workloads, restoring into a different cluster, configuring scheduled backups, or setting retention policies. Those scenarios are usually where backup tooling becomes more interesting and complex. Testing PVC backups would probably be the next logical step, but for this proof of concept I didn’t feel like extending the scope that far.
